CDL/CDLF
Stainless Steel Vertical Multistage
Centrifugal Pump
HOBANM Electromechanical Co., Ltd. is a comprehensive joint-stock technology enterprise integrating pump design, research and development, production, sales and service. Founded in 2017, the company has achieved rapid development at home and abroad and has received extensive attention in line with the tenet of "customer-centric, pursuit of high quality and service".
Water supply & drainage for high-rise buildings, filtration andtransfer atwaterworks, pressure boosting in main pipe.
Washing and cleaning systems, boiler feeding, cooling watercirculation.water treatment systems, auxiliary system, supportequipment.
Ultra-filtration systems, reverse-osmosis systems, distillationsystems,separators, swimming pools.
Agricultural irrigation: sprinkler irrigation, drip-feed irrigation.
Fire-fighting system
lE 2 motor (lE 3 motor optional)Totally enclosed & fan-cooled
Protection class: IP55
Standard voltage:50Hz 380V
Max. ambient temperature: +40C .Ambient temperatureabove 40C or installation at altitude of more than 1000meters above sea level require the use of an oversize motor.Because of low air density and poor cooling effects, theoutput power of the motor will be decreased.
Low viscosity, non-inflammable and non-explosive liquids notcontaining solid particles or fibers. The liquids must notchemically attack the pump materials, When pumping liquidswith a density or viscosity is higher that of water, a motor witha higher output power rating shall be used.
Liquid temperature:-20°C~+ 120°C
Liquid pH value:4-10
Max, ambient temperature:+40°C
Max, operating pressure: 33 bar
Altitude: up to 1000 m

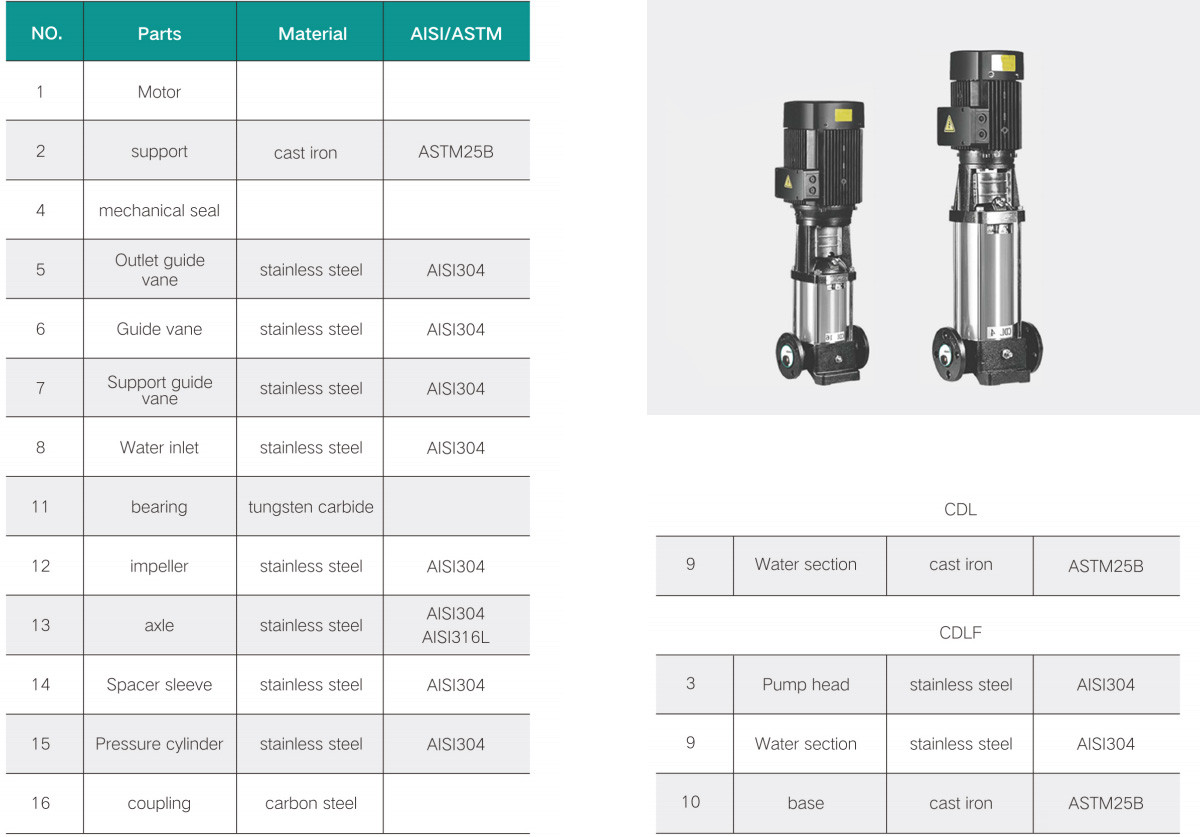

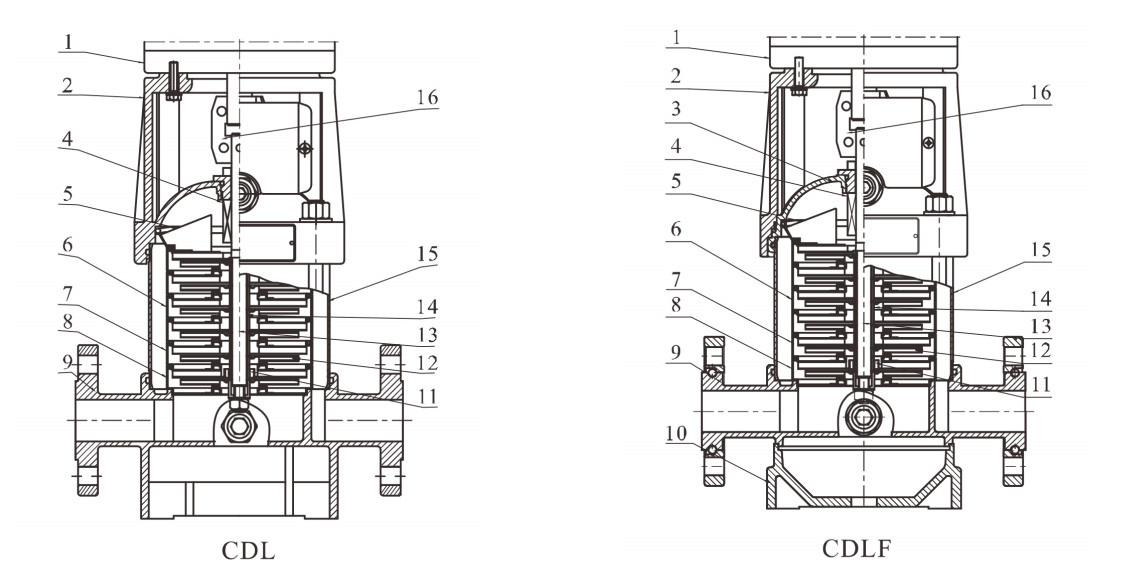

CDL: Cast iron base & pump cover
CDLF: Stainless steel wetted parts
Application scenario
Application scenario
The flow parts of the pump are made of Baosteel 304 stainless steel shaft and 304 stainless steel fasteners, which are hard and not easy to deform.
The standards and accuracy of the medium temperature, PH value, density, diving depth, voltage fluctuation range and so on are strictly required
Independent innovation of electronic intelligent overheat protection technology, to ensure the lack of phase, stuck and not burning machine; Import sealant to ensure that the cable is damaged without water, improve the reliability of pump operation.
High lift

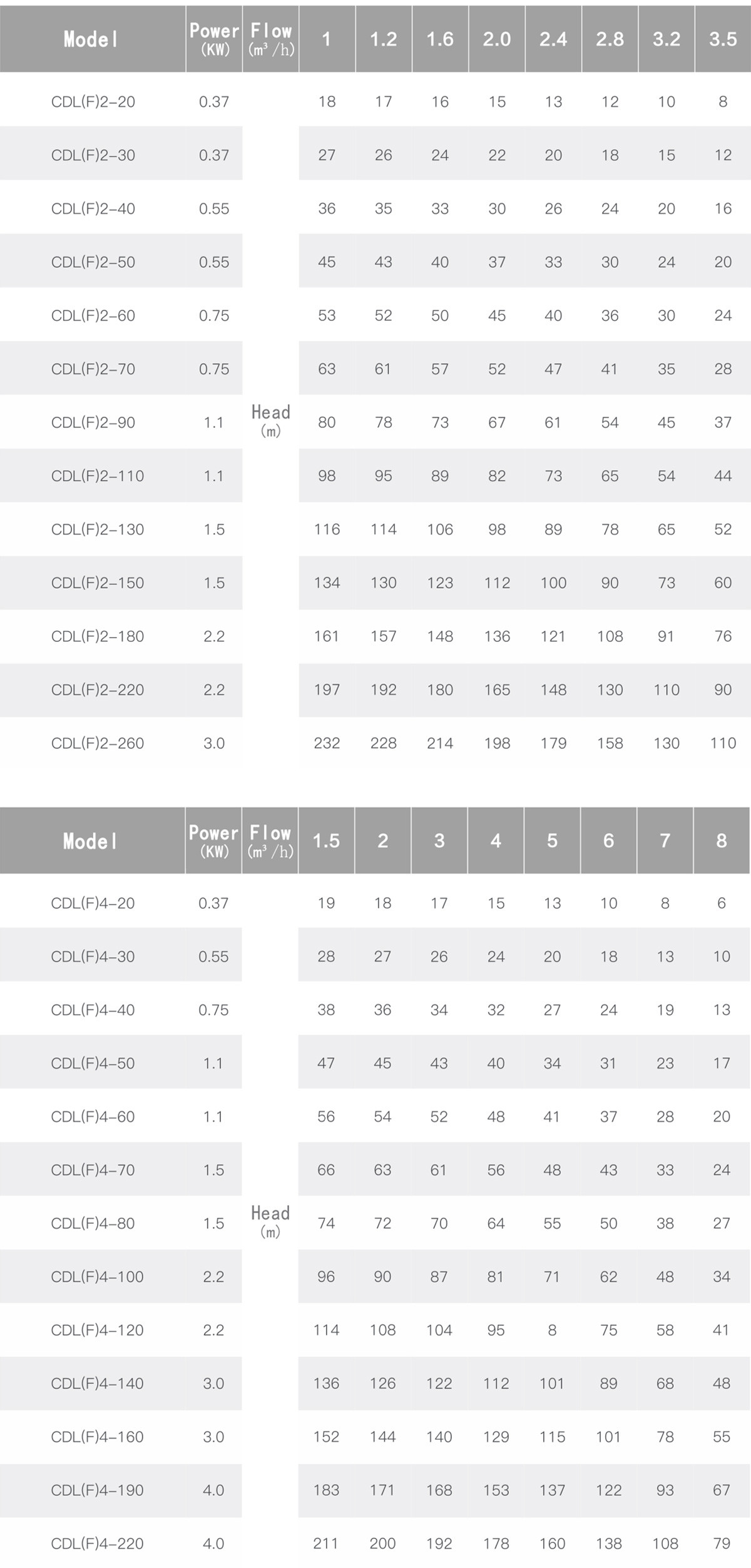

The lift range reaches 5-150m.
Wide applicability
Widely used in garden irrigation, agricultural sprinkler irrigation, urban water supply, industrial water, sewage treatment, construction water and other fields.
High efficiency
The technical team researches and develops the working efficiency of the pump, improves the performance of the pump in multiple ways, and creates a high-efficiency and energy-saving motor.
11,000 ㎡ production base
Equipped with 9 intelligent production lines
Complete equipment: CNC machining, electronic detection, automatic wiring and other equipment
Engaged in the pump industry for 34 years, core engineers focus on pump technology for more than 20 years
Annual investment in research and development of 1 million yuan
Implement 6S standardized production management, and comply with ISO9001-2009 quality management system standards
After layers of testing before delivery: aging test, destructive test, life test, performance test
Technicians provide on-site service within 24 hours to solve after-sales problems
Warranty period 1 year, lifetime maintenance
Our expert team customizes pumps based on purpose, environment,
power, and specifications for optimal performance.
