CHL
Stainless Steel Horizontal Multistage Pump
HOBANM Electromechanical Co., Ltd. is a comprehensive joint-stock technology enterprise integrating pump design, research and development, production, sales and service. Founded in 2017, the company has achieved rapid development at home and abroad and has received extensive attention in line with the tenet of "customer-centric, pursuit of high quality and service".
It is applicable to household water supply, equipmentsupport, pipeline pressurization, garden watering, vegetablegreenhouse watering, fish farming and poultry raising, supplyand drainage of enterprises and high-rise buildings, centralair conditioner and centralized heating circulation system, etc.
AIS1304 shaft
Max. liquid temperature: +60°C
Altitude: up to 1000 m
Max.suction:8 m
Max. inlet pressure: limited by max.operating pressure
Max.operating pressure: 10 bar
Liquid PH value: 6.5 -8.5
Motor with copper winding
Insulation class: F
Protection class: IPX4
Max. ambient temperature:+40°C
Application scenario
Application scenario

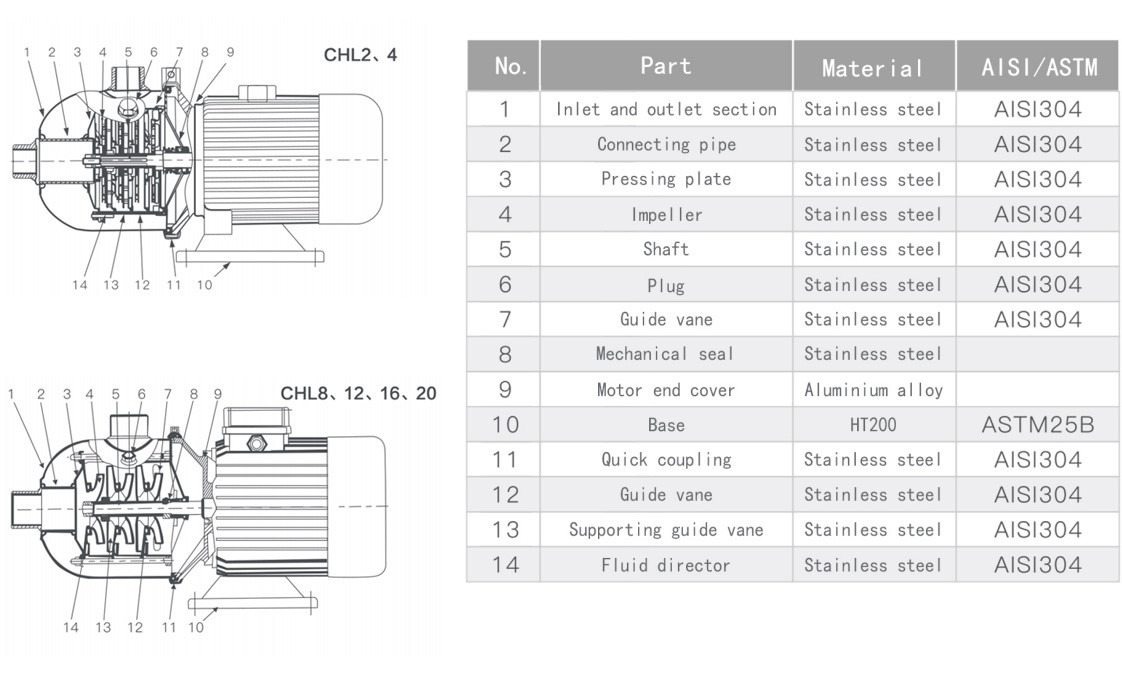

The flow parts of the pump are made of Baosteel 304 stainless steel shaft and 304 stainless steel fasteners, which are hard and not easy to deform.
The standards and accuracy of the medium temperature, PH value, density, diving depth, voltage fluctuation range and so on are strictly required
Independent innovation of electronic intelligent overheat protection technology, to ensure the lack of phase, stuck and not burning machine; Import sealant to ensure that the cable is damaged without water, improve the reliability of pump operation.
High lift
The lift range reaches 5-150m.
Wide applicability
Widely used in garden irrigation, agricultural sprinkler irrigation, urban water supply, industrial water, sewage treatment, construction water and other fields.
High efficiency
The technical team researches and develops the working efficiency of the pump, improves the performance of the pump in multiple ways, and creates a high-efficiency and energy-saving motor.
11,000 ㎡ production base
Equipped with 9 intelligent production lines
Complete equipment: CNC machining, electronic detection, automatic wiring and other equipment
Engaged in the pump industry for 34 years, core engineers focus on pump technology for more than 20 years
Annual investment in research and development of 1 million yuan
Implement 6S standardized production management, and comply with ISO9001-2009 quality management system standards
After layers of testing before delivery: aging test, destructive test, life test, performance test
Technicians provide on-site service within 24 hours to solve after-sales problems
Warranty period 1 year, lifetime maintenance
Our expert team customizes pumps based on purpose, environment,
power, and specifications for optimal performance.
