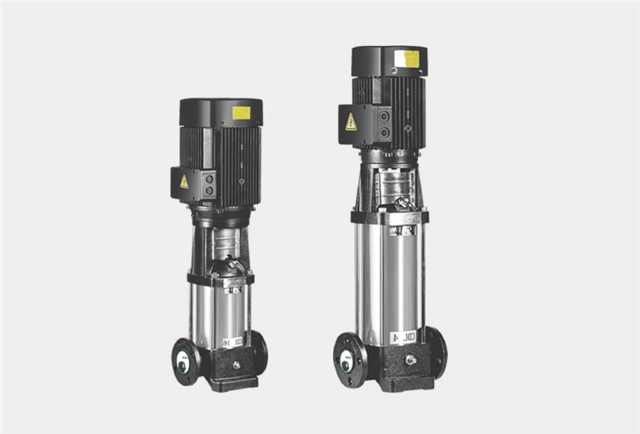

CDL/CDLF
Stainless Steel Vertical Multistage
Centrifugal Pump
HOBANM Electromechanical Co., Ltd. is a comprehensive joint-stock technology enterprise integrating pump design, research and development, production, sales and service. Founded in 2017, the company has achieved rapid development at home and abroad and has received extensive attention in line with the tenet of "customer-centric, pursuit of high quality and service".
HOBANM Products Find Your Perfect Pump!
-
Application
Water supply & drainage for high-rise buildings, filtration andtransfer atwaterworks, pressure boosting in main pipe.
Washing and cleaning systems, boiler feeding, cooling watercirculation.water treatment systems, auxiliary system, supportequipment.
Ultra-filtration systems, reverse-osmosis systems, distillationsystems,separators, swimming pools.
Agricultural irrigation: sprinkler irrigation, drip-feed irrigation.
Fire-fighting system
Motor
lE 2 motor (lE 3 motor optional)Totally enclosed & fan-cooled
Protection class: IP55
Standard voltage:50Hz 380V
Ambient Temperature
Max. ambient temperature: +40C .Ambient temperatureabove 40C or installation at altitude of more than 1000meters above sea level require the use of an oversize motor.Because of low air density and poor cooling effects, theoutput power of the motor will be decreased.
-
Operating Conditions
Low viscosity, non-inflammable and non-explosive liquids notcontaining solid particles or fibers. The liquids must notchemically attack the pump materials, When pumping liquidswith a density or viscosity is higher that of water, a motor witha higher output power rating shall be used.
Liquid temperature:-20°C~+ 120°C
Liquid pH value:4-10
Max, ambient temperature:+40°C
Max, operating pressure: 33 bar
Altitude: up to 1000 m
Identification Codes
CDL: Cast iron base & pump cover
CDLF: Stainless steel wetted parts
Section drawing
Product Material
