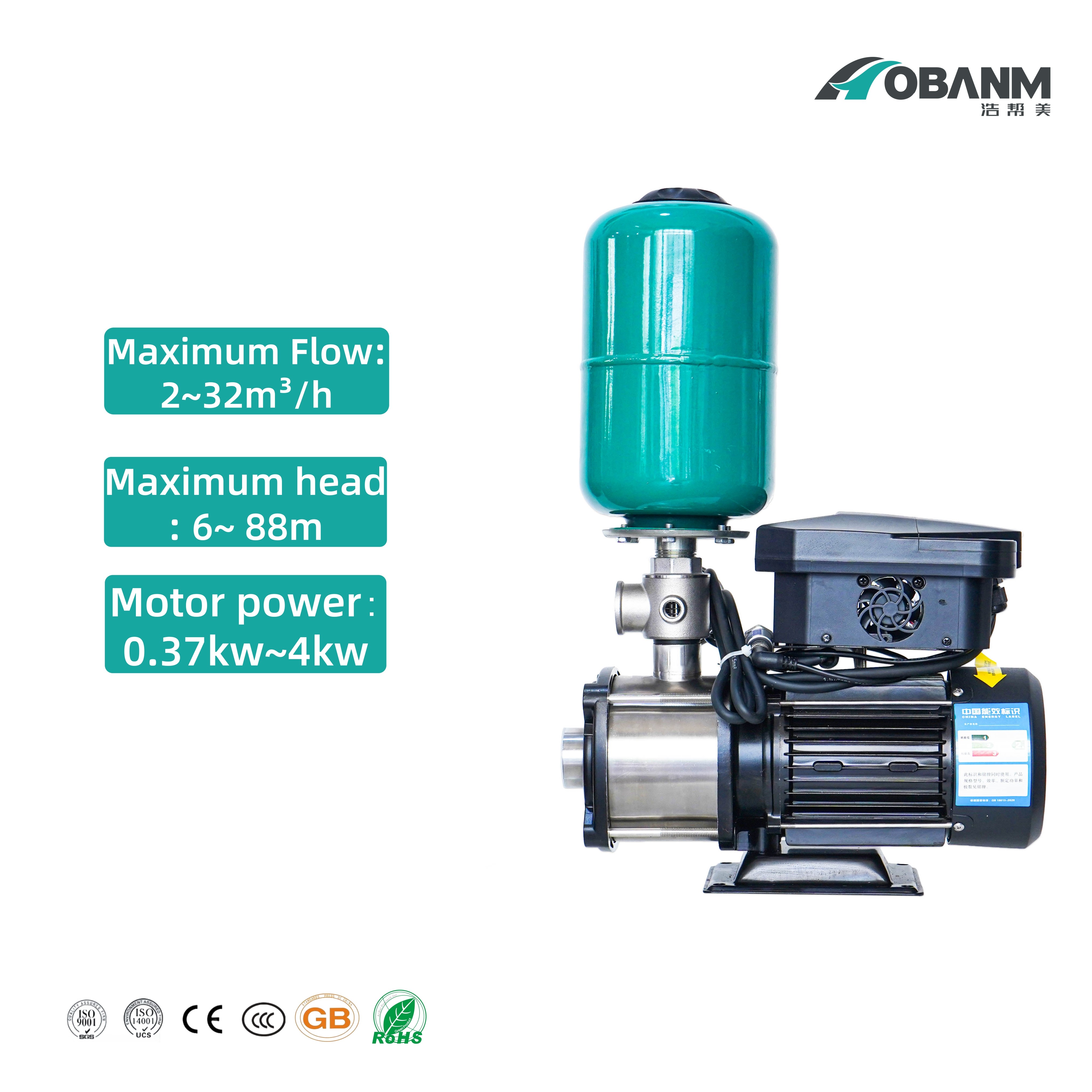

CHL
Stainless Steel Horizontal Multistage Pump
HOBANM Electromechanical Co., Ltd. is a comprehensive joint-stock technology enterprise integrating pump design, research and development, production, sales and service. Founded in 2017, the company has achieved rapid development at home and abroad and has received extensive attention in line with the tenet of "customer-centric, pursuit of high quality and service".
HOBANM Products Find Your Perfect Pump!
-
Application
It is applicable to household water supply, equipmentsupport, pipeline pressurization, garden watering, vegetablegreenhouse watering, fish farming and poultry raising, supplyand drainage of enterprises and high-rise buildings, centralair conditioner and centralized heating circulation system, etc.
Pump
AIS1304 shaft
Max. liquid temperature: +60°C
Altitude: up to 1000 m
Max.suction:8 m
Max. inlet pressure: limited by max.operating pressure
Max.operating pressure: 10 bar
Liquid PH value: 6.5 -8.5
-
Motor
Motor with copper winding
Insulation class: F
Protection class: IPX4
Max. ambient temperature:+40°C
Identification Codes
Section drawing
Hydraulic Peformance Curves
Technical Data Find Your Perfect Pump!
